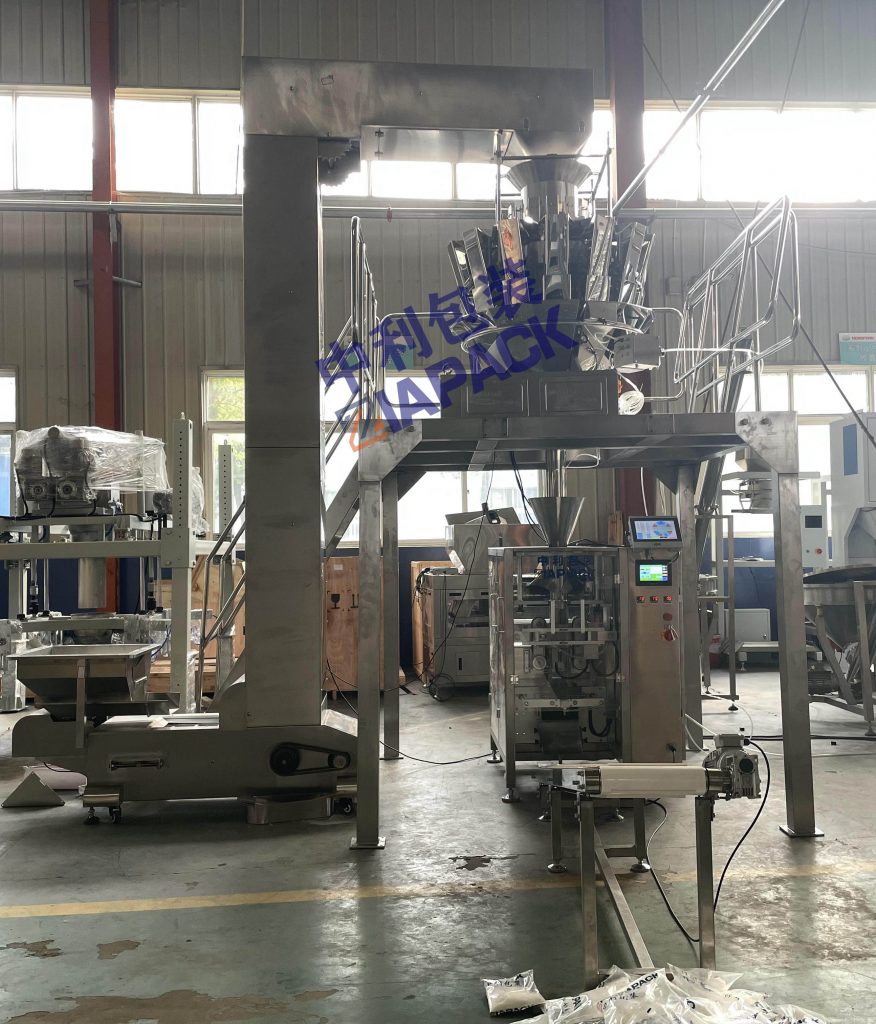

ZL520 vertical bag forming filling sealing Packaging machine
Celý stroj vyrobený z nerezové oceli 304, tento stroj je vybaven výrobou sáčků, řezáním, tiskem kódů atd. Siemens PLC a dotyková obrazovka, servomotor Panasonic, japonský fotosenzor, korejský vzduchový ventil atd.
Systém tažení fólie přijal řízení servomotoru, což zrychlilo rychlost.
Technické parametry:
Rozsah vážení: 30-500g
Rychlost balení: 20-40 sáčků/min
Velikost sáčku: (80-360)*(100-260)mm (D*W)
Potřeba stlačeného vzduchu: 0,6 MPa 0,65 m³/min
Vnější průměr cívky: 400 mm
Vnitřní průměr jádra: 75 mm
Hmotnost stroje: 600 kg
Zdroj energie: 4,5kW 380V±10% 50Hz
ZL14-2.5L Leak-proof multi-head weighing machine for sugar
aplikace

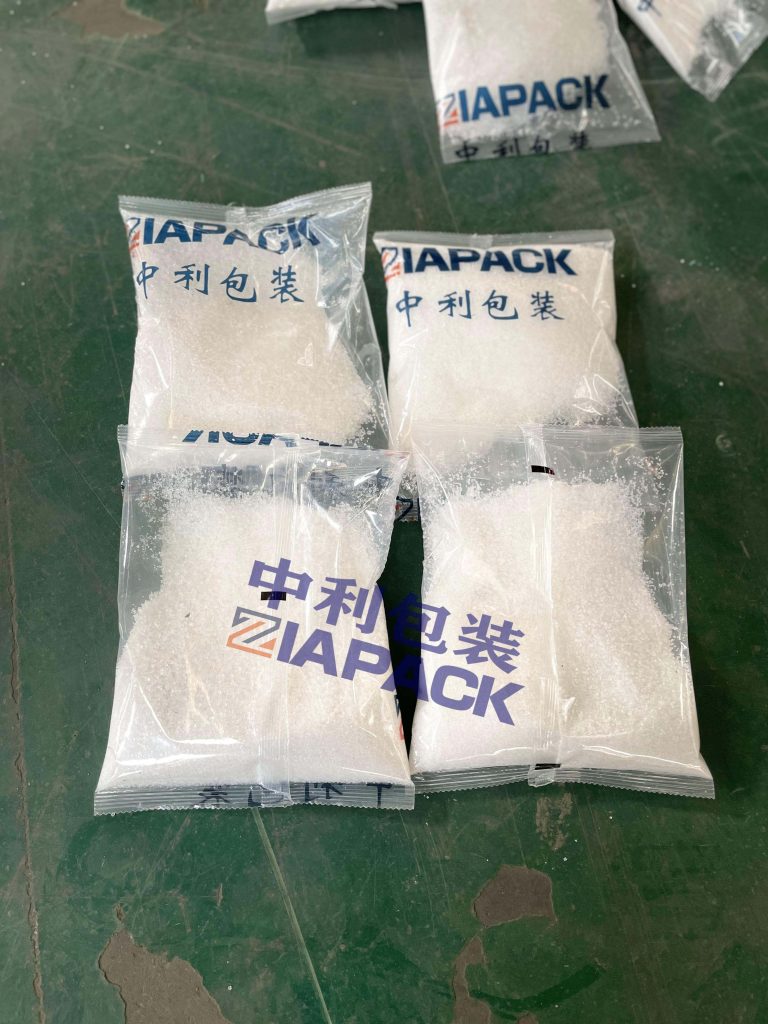

leak proof Multihead Weigher Machine is suitable for weighing small granules such as rice, sugar, fine tea, detergent powder, etc.
Funkce
1.Special load cell with high precision and high standard.
2.Program recovery function can reduce operation failures and support multi-segment weight calibration.
3.No products auto pause function can improve weighing stability.
4.Linear amplitude can be adjusted independently.
5.Many languages available for global markets.
6.100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation.
Mechanical character
1.Multi-mouth feeder can dispense products into each linear feeder pan effectively.
2.Specially designed U-shaped linear feeder pans can avoid leaking problem.
3.Mold making process and uniform design standards contribute to better interchangeability for spare parts.
4.Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.
5.Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy.
