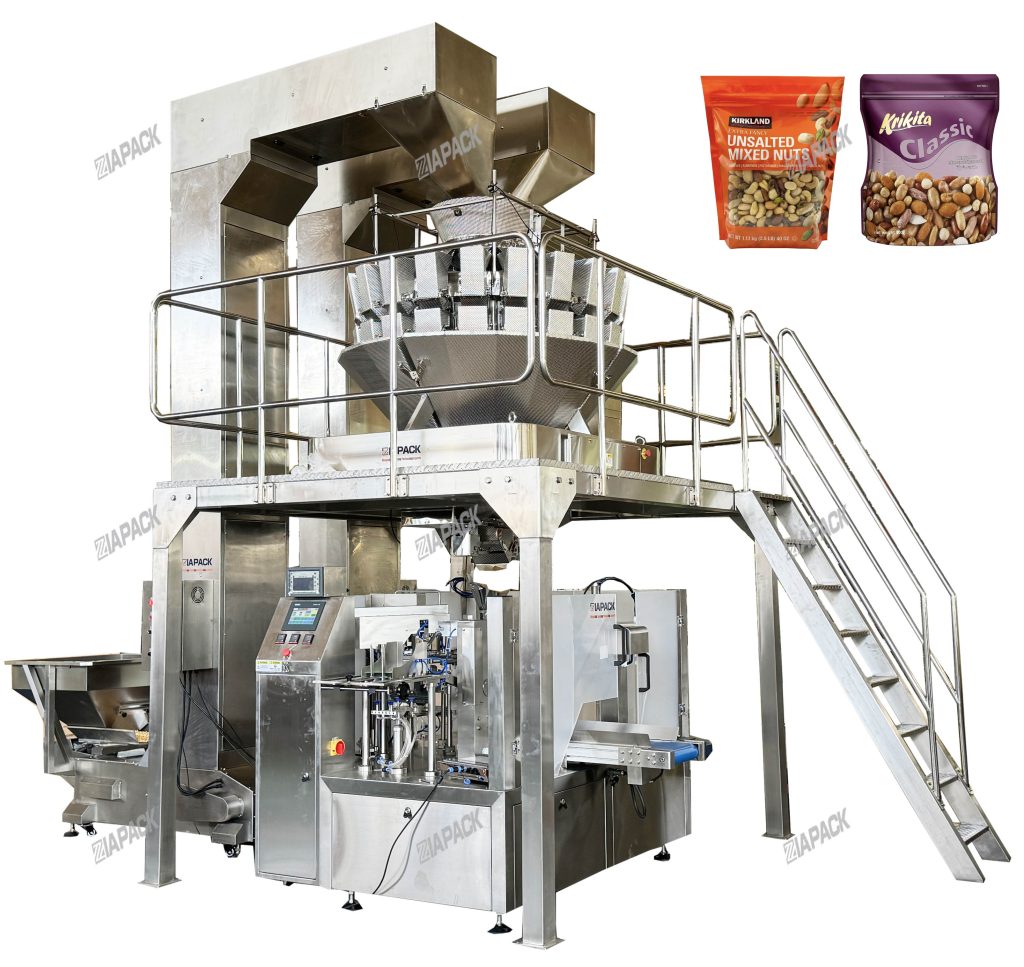

AutomatiC doy bAg packing solution for 25-500grAm nuts
MAChinE introduction :
This unit machine including one set ZL20-1.6L multi heads weighing machine for weighing two different product ,one set ZL8-230 rotary bag taking opening filling sealing machine ,one set DT5 bucket elevator and one set safety platform and ladder .The main machine are control by siemens PLC and operate by touch screen .Adopt famous Electrical accessories. High automation and easy to operate .Widely use by the different industry like Daily chemical, food, chemical, and etc.
MAChinE detAils :

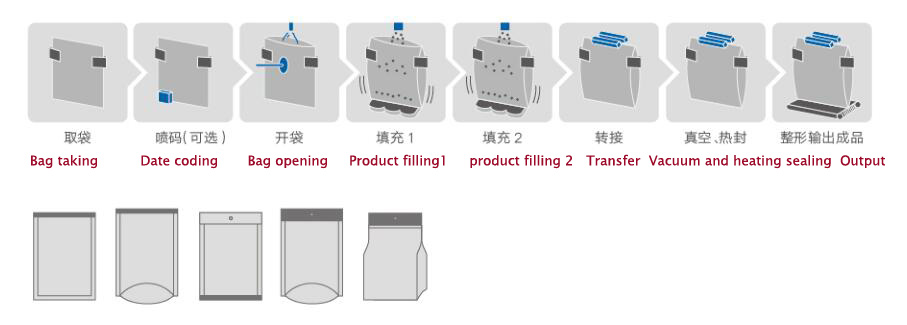

1,ModEl of ZL8-230 RotAry pACking mAChinE(doy pACkEr with zippehm)
Function And ChArACtehmistiCs
1、Easy to operate,adopt advanced PLC from Siemens, mate with touch screen and electric control
system, the man-machine interface is friendly.
2、Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can
be adjusted within the range according to the needs of reality in production
3、Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again,
avoid wasting packing materials and raw materials.
4、Safety device: Machine stop at abnormal air pressure, heater disconnection alarm。
5、The width of the bags could be adjusted by electrical motor. Press the control-button could adjust
the width of clips, easily operate, and save time.
6、It can match with the glass safety door. At the same time, it could prevent dust.
7、Use the plastic bearing, don’t need put on oil, less pollution.
8、Use no oil vacuum pump, avoid polluting the environment in the production.
9、The packing materials loss low, what this machine is used the preformed bag, the bag pattern is
perfect and has a high quality of the sealing part, this improved the product specification
10、Product or packing bag contact parts adopt stainless steel or other materials which accord with
the food hygienic requirements, guarantee hygiene and security of the food
11、With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
12、The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and
so on Preformed bag made by film and paper.
SpecifiCAtions
Modelka | 8-230 ZL |
Pracovní pozice | osm pracovních pozic |
Materiál pouzdra | Laminated film |
Puškohled | Doy packer with zipper ,pillow bag |
Velikost pouzdra | W:100-230mm L:150-350mm |
Rychlost | 10-35pouches/min(The speed depends on the product status and filling weight)) |
Hmotnost | 1400 KGS |
Napětí | 380V 3fázové 50Hz / 60Hz |

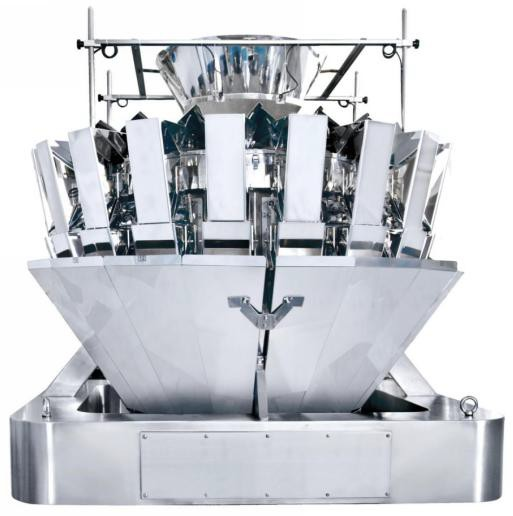

- ZL20-2,5LmultihEAds CombinAtion wEighing mAChinE
- SCopEofAppliCAtion:
It is suitable for high-speed weighing of a single material, formula mixing of multiple materials: the longest material is 60mm, and the single material is less than 60g, such as instant oatmeal and
mixed nuts.
- FEAturEs:
- Thehigh-speedmode can be used for a single material;
- Theweightof the mixture can be compensated by the operation of the last material;
- Usinghigh-precision,high-standard special sensors;
- Intelligentfaultalarm prompt, maintenance is more convenient;
- High-speedasynchronousdischarge function, effectively prevent material blockage;
- Thenewhighly integrated modular design adopts CAN bus technology;
- Modbus industrystandardcommunication protocol, realizes the combination of the combination scale and the packaging machine interface;
- Other functionsandfeatures of the same generation model;
- Forviscousmaterials, anti-stick measures such as 60° chassis and Teflon coating can be used.
- MeChAniCalChArActEristiCsAnd product ChArActEristiCs:
- Separateupperhoppers are used for a variety of mixed formula materials;
- Adopt independentmainvibration machine to control the feeding thickness of different materials
respectively;
- Theintegralchassis and middle seat enhance the rigidity and strength of the machine, making the weighing more accurate;
- Thechassisand chute adopt compatible design. When weighing a single material, it can be replaced with a double-port unloading tray, which can be equipped with a double-packing machine;
- Theunifieddesign standard and the mold making process make the interchangeability of each part stronger.
- Thestablealuminum shell structure makes the hopper run more stably and the readings are more accurate. The integral chassis and the middle seat enhance the strength of the machine, making the hopper's stabilization time shorter;
SpecifiCAtions:
Modelka | ZLJ20-2.5L |
Code | A20-2-2 |
Target weight | 10-1000gram |
Přesnost | X(0.5) |
Maximum speed | 65B/M (Mixed product) /100B/M Single product |
Objem | 2,5L |
Touch screen | 10.4' |
Optional | Dimple Plate/Timing Hopper/Printer/Reject Device |
Režim jízdy | Step motor |
Napájení | 220V/2000W/50/60HZ 16A |
Packing dimension | 1920*1650*1620 |
Hmotnost stroje | 850kg |
